After reviewing the stack and setup for the blog over the last few days, I noticed something interesting the original CircleCI Config file:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
version: 2.1
jobs:
  release:
    docker:
      - image: node:lts
    working_directory: ~/hexo-cloudonmymindblog
    steps:
      - checkout
      - run:
          name: Install Hexo CLI
          command: npm install -g hexo-cli
      - run:
          name: Install Hexo Deployer
          command: npm install hexo-deployer-aws-s3 --save
      - restore_cache:
          keys:
            - npm-deps-{{ checksum "package.json" }}
      - run:
          name: Install dependencies
          command: npm install
      - save_cache:
          key: npm-deps-{{ checksum "package.json" }}
          paths:
            - node_modules
      - run:
          name: Force theme download
          command: git clone https://github.com/paulmarsicloud/hexo-theme-cactus themes/cactus
      - run:
          name: Generate static website
          command: hexo generate
      - run:
          name: Install AWS CLI
          command: |
            apt-get update
            apt-get install -y awscli
      - run:
          name: Push to S3 bucket
          command: hexo deploy

workflows:
    version: 2
    build_and_deploy:
      jobs:
        - release

Basically, the number of commands to build and deploy the server were kinda. . . long. Both in just the number of commands, but also in the deployment times:

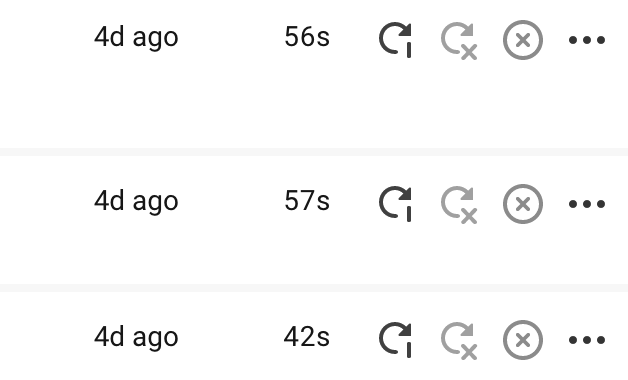

previous deployment times...not bad, but could be improved

Now, ~1 minute deployments to the S3 bucket are perfectly fine for the use case of this blog. However, for fun, I thought it would be neat to see if I could get that time down. Enter. . . Docker

Docker

Note; I won’t go into detail about Docker and containerization as that’s outside the scope of this blog. But images and Containers are our present and future, and we all need to be comfortable with them 🙂

So CircleCI spins up a Docker image and then runs the commands from the config and pushes the code to S3. To make the code push complete faster, I thought “why not have all the commands pre-ran/built in Docker?”.

As a good technologist, rather than build something entirely from scratch, I looked to see if there were any Docker images that already had Hexo pre-installed. I found this awesome image from James Spurin and read this great article as well, which put the wheels in motion for my next move. I could have easily used the Spurin Hexo Docker image, but the use-case for that image is clearly more to build the Hexo website within a Docker Container, whereas my use-case was to use a Docker Container to build and deploy the Hexo website.

Building a “custom” Docker Container

After taking a look at the CircleCI config file, I realized that I need the Docker image to simply do the following:

  • Install Hexo
  • Download the GitHub repo
  • Generate the thecloudonmymind.com blog
  • Push the generated website to AWS S3

I thought it would be a good opportunity to learn a little more Docker and spin up an image myself that does just that. So after a fair bit of testing on machine, I came up with this Docker Container!

To get this rolling, I had to perform the following:

The Dockerfile in that repo shows the components that make up and essentially “pre-load” the Container for CircleCI to use. My initial thoughts were that a Container could house the GitHub codebase too, but then for every commit to the blog repo I would need to re-build the Docker Container so that it has the latest changes on the Container. . .not super efficient and may make the Container startup time longer. . .

I also learned that in order to authorize Docker Hub to build the Containers you should do this within a GitHub organization (so as to not expose your private and public GitHub repos to Docker Hub). So I setup a Docker Hub Organization and Git Hub Organization based on this blog, and we’ll see where the future take us!

With the new pre-installed Hexo with AWS CLI Container now being available, the CircleCI Config file now looks like this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
version: 2.1
jobs:
  release:
    docker:
      - image: paulmarsicloud/hexo-aws:1.5
    working_directory: ~/hexo-cloudonmymindblog
    steps:
      - checkout
      - run:
          name: Force theme download
          command: git clone https://github.com/paulmarsicloud/hexo-theme-cactus themes/cactus
      - run:
          name: Generate static website
          command: hexo generate
      - run:
          name: Push to S3 bucket
          command: cd public/ && aws s3 sync . s3://www.thecloudonmymind.com

workflows:
    version: 2
    build_and_deploy:
      jobs:
        - release

And now takes around ~30 seconds to deploy. . .not too bad and definitely an improvement! 💪

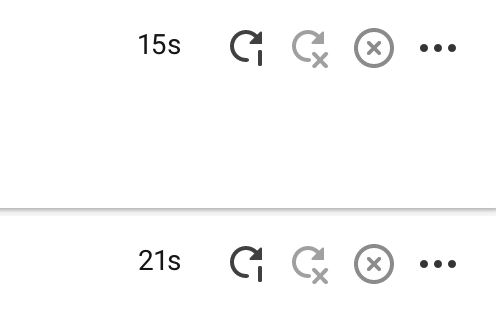

success in lowering deployment times!

Recap

  • Built a custom pre-installed Hexo and AWS CLI Docker Container
  • Took the CircleCI config steps from 9 commands to 3 commands
  • Improved the website deployment from ~1 minute to ~30 seconds!
